SAATI is pleased to introduce you to the state of the art in computer-to-screen stencil making - the SAATI LTS Series

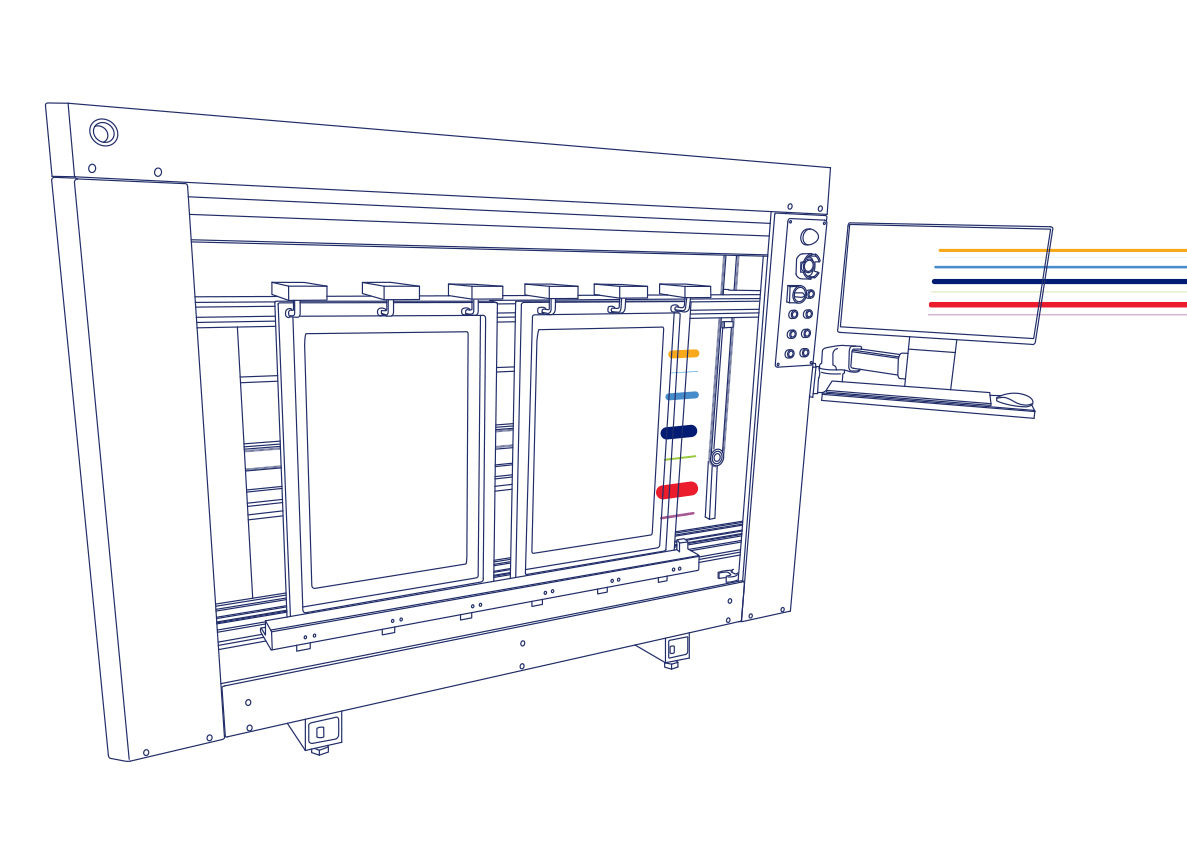

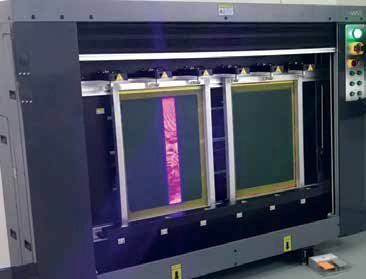

SAATI LTS machines use laser diodes to directly image and expose stencils simultaneously.
The 405 nm laser array is the correct wavelength for optimal through-cure so that stencils are processed rapidly, at high resolution (up to 2,540 dpi) and with no consumables like ink, wax or film, while drawing much less power than non-targeted wavelength light sources.
The included workflow software allows stencil makers process art files in-house, and to place one or more images on one or more stencils at the same time, further enhancing productivity and planning. In addition, remote viewing capabilities allow SAATI technicians to assist printers in calibrations without the need for face to face meetings in the pandemic age.
The affordable price point compared to other computer to screen technologies opens up higher resolution and more efficient computer-to-screen stencil making to a much broader group of screen printers, so the end result should be to enable access to higher quality and productivity, with a reduced carbon footprint.
Physical Characteristics
| Machine Style |
Weight lbs / kg |
Machine Size (in / cm) |
Max Frame Size (in / cm) |
Max Imaging Area (in / cm) |
Number of Lasers |

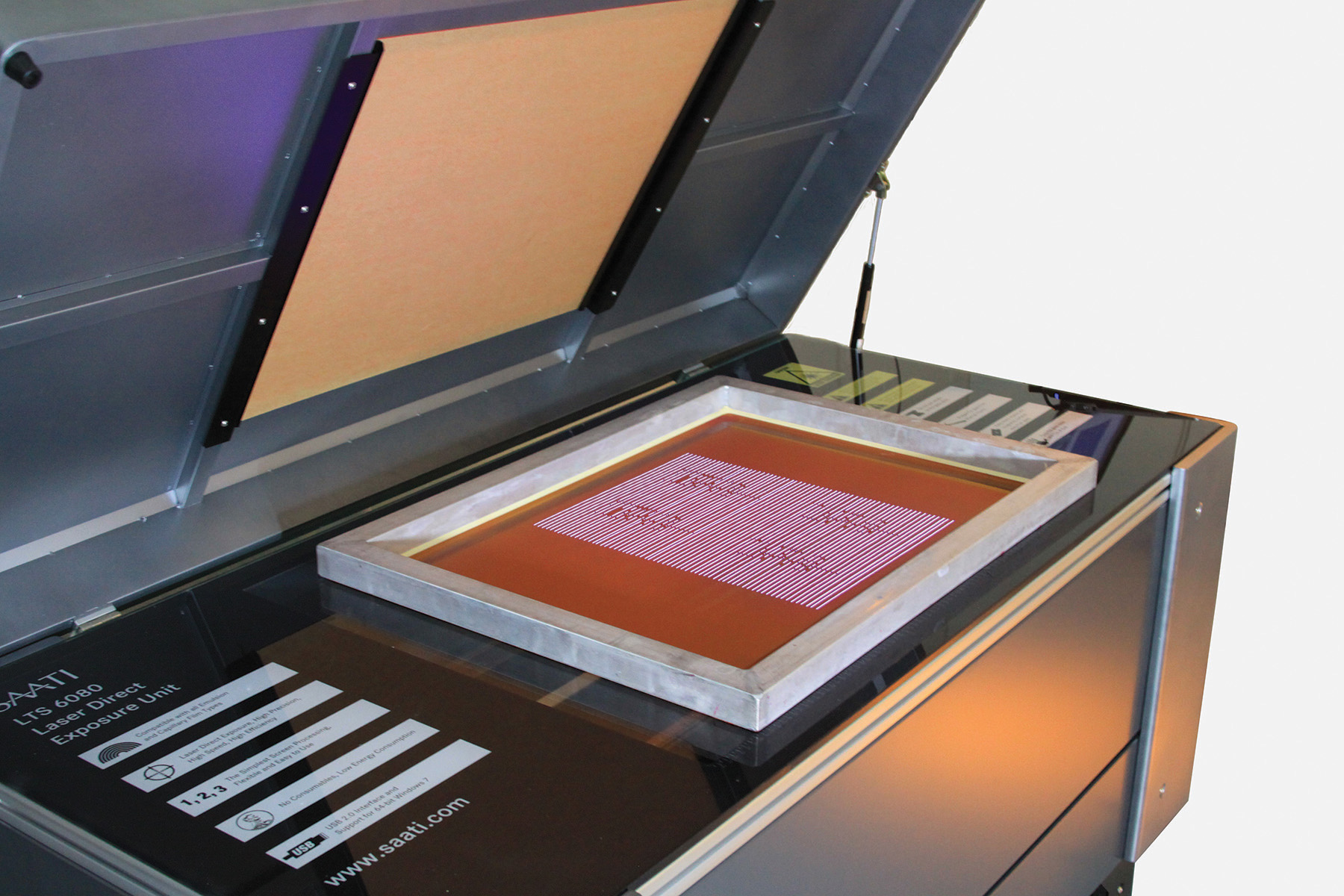

| LTS 6080 |
1316 597 |
65.7x32.3x36.6 167x82x93 |
33.5 x 43.3 85 x 110 |
23.6 x 31.5 60 x 80 |
96 |
| LTS 6012 |
1874 850 |
86.6 x 22.8 x 64” 220x58x163 |
41.3 x 63 105 x 160 |
23.6 x 47.2 60 x 120 |
96 |
| LTS 8012 |
2039 925 |
86.6 x 22.8 x 64” 220x58x163 |
41.3 x 63 105 x 160 |
31.5 x 47.2 80 x 120 |
128 |
| LTS 1015 |
2646 1200 |
102.4 x 26.8 x 78.7” 260 x 68 x 200 |
59.1 x 74.8 145 x 200 |
39.4 x 59.1 100 x 150 |
160 |
