LTS Series by SAATI

SAATI's LTS series is the current state of the art in Computer-to-Screen technology.

Each unit in the range is a self-contained, super high efficiency direct laser Computer-to-Screen image & exposure unit, operated by PC with optional RIP.

Array of 405 nm LED (96, 128 or 160) lasers capable of creating stencils at 2540, 1693, 1270, 1016, and 847 DPI settings
Expose all emulsions and stencil film types quickly and thoroughly, in multi- and single screen configurations
Easy to use software, compatible with many RIP programs, optional RIP can be provided as part of purchase
Utilizes 1-bit TIFF file format

The unique machines in the LTS series offer the following benefits as a result

Very high resolution CtS exposure capable of reproducing the most demanding image types
Double screen output by imaging & exposing two screens at once
Digitally process all types of PC & Mac design files in house with no film positives and the powerful workflow software allows multiple image placements across one or two screens to further enhance productivity
No consumables and low power consumption for minimized costs
10,000+ hour laser diode life and easy, low cost maintenance of individual diodes

Choose the correct machine for you:

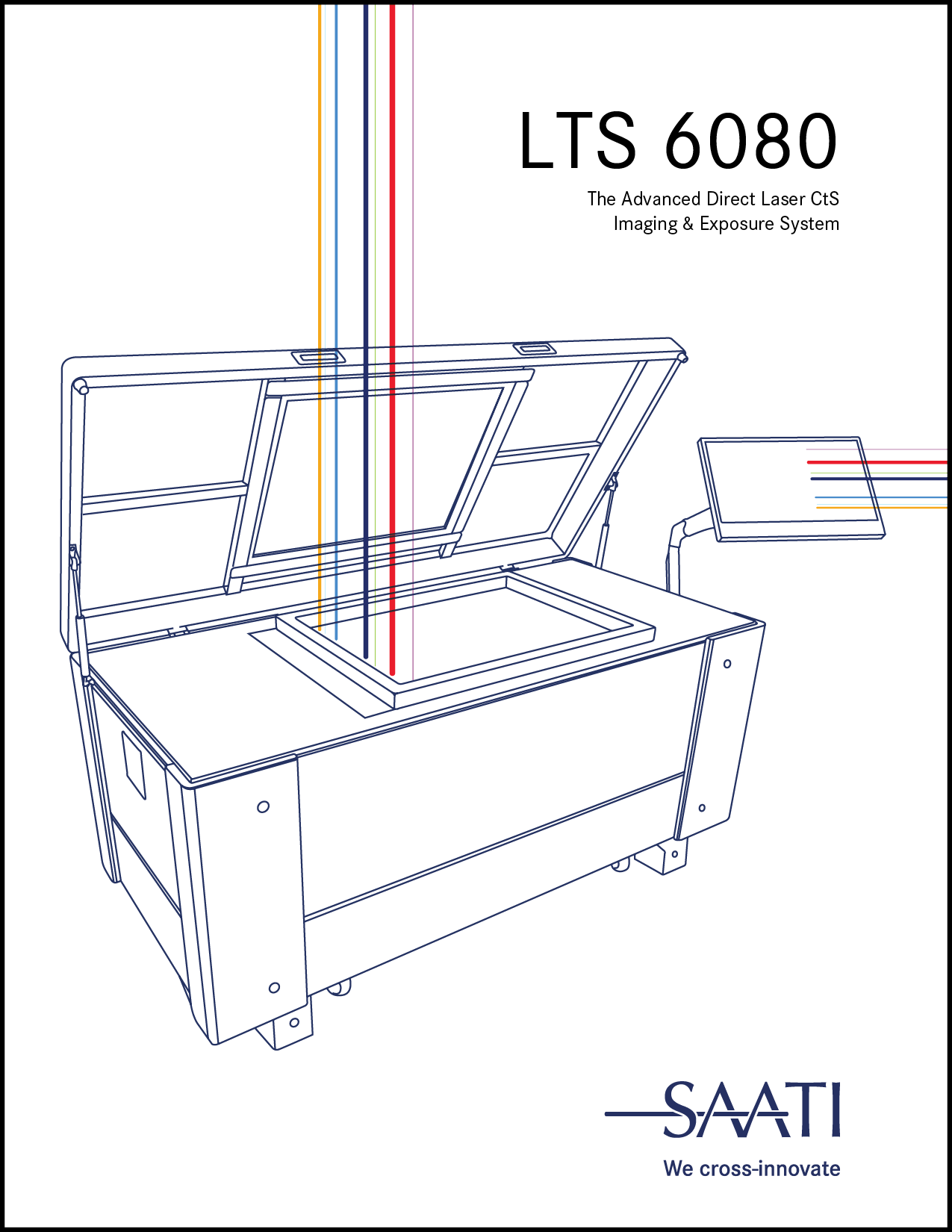

SAATI LTS 6080 - Perfect for registering multiple small industrial graphics screens, the 96-laser horizontal glass down unit images an area of 24x31.5", and can also accomodate one screen up to 25x36"

SAATI LTS 6012 - Perfect for textile printers, the 96-laser vertical glass-free unit processes two screens up to 23x31" or one screen up to a size of 41x68"

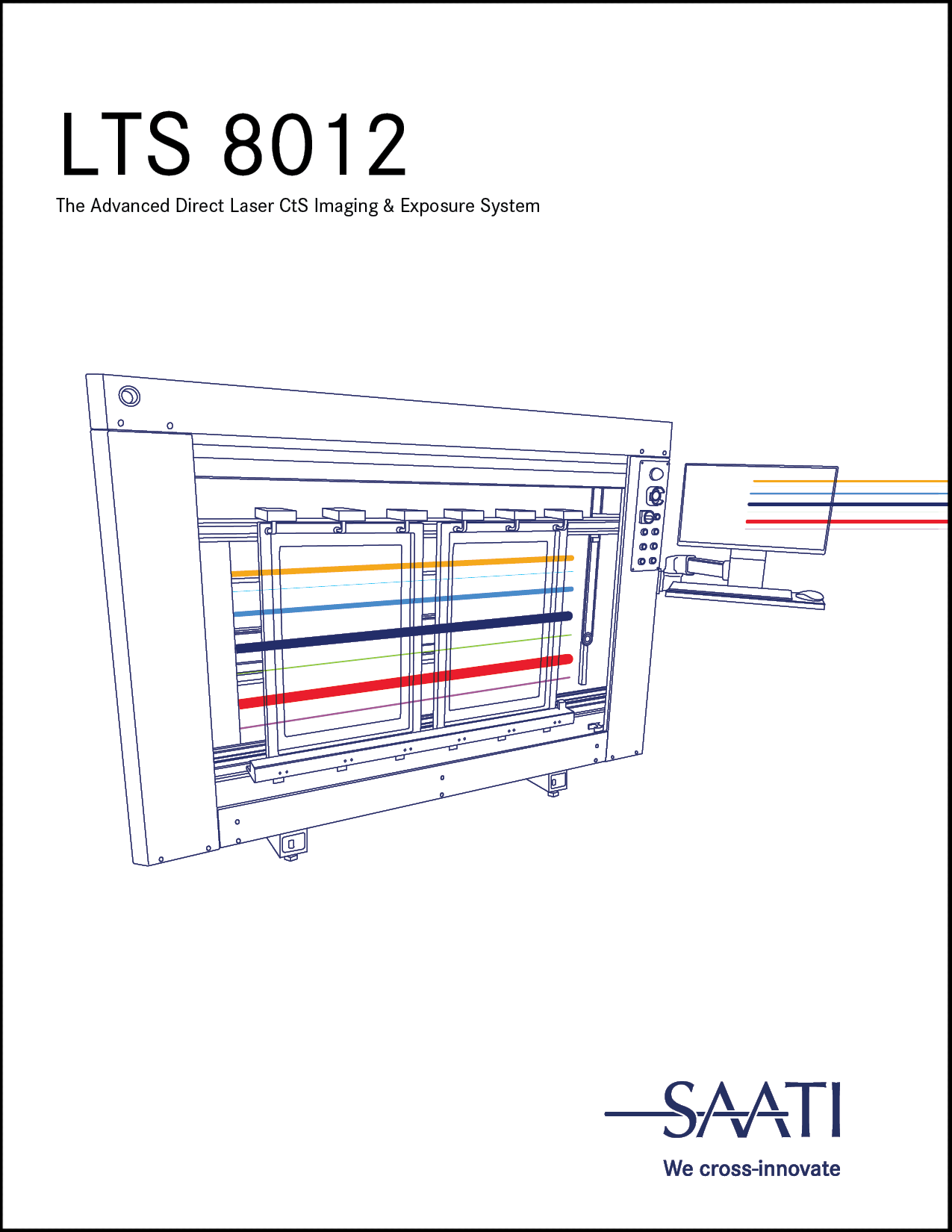

SAATI LTS 8012 - Perfect for textile printers, the flagship 128-laser vertical glass-free unit that processes two screens up to 25x36" or one screen up to a size of 45x68"

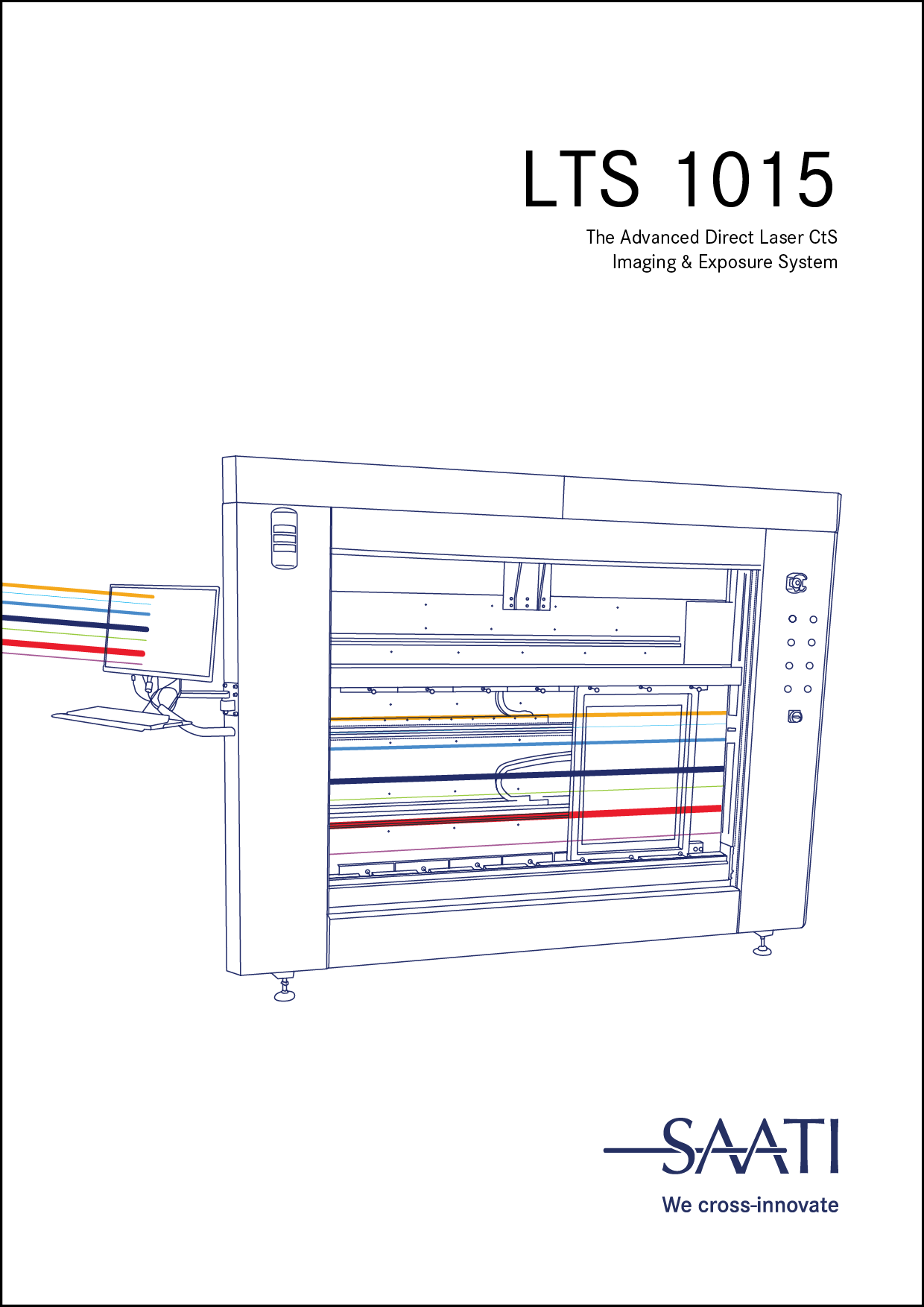

SAATI LTS 1015 - Perfect for large industrial & electronics graphics, the larger 160-laser vertical glass-free design is capable of processing one screen up to 55x79", or two screens up to 25x36" which benefits textile printers
