Product Overview
To purchase by phone, to seek financing options, to discuss this product or other SAATI products that you don't see, contact us! Call SAATI toll-free -1-800-431-2200 - or e-mail us
View the SAATI LTS 6080 Brochure

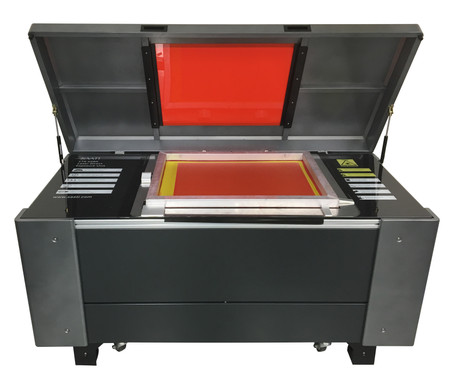

Self-contained, super high efficiency direct laser Computer-to-Screen image & exposure unit, operated by PC with optional RIP.
Applications
Designed to efficiently image and expose one stencil up to a maximum size 33.5 x 43.3” without vacuum or film positives, or multiple small stencils as in ad specialty printing.
Characteristics
-
Facedown glass panel with enclosing lid, perfect for registering multiple small frames
-
96 laser array capable of 2540, 1693 1270, 1016, or 847 DPI
-
Exposes all emulsions and stencil films
-
Easy to use software, compatible with many RIP programs
-
Utilizes 1-bit TIFF file format
-
Amber color safelight viewing window
Features/Benefits
-
Very high resolution CtS exposure capable of reproducing the most demanding image types
-
Double screen output by imaging & exposing two screens at once
-
Digitally process all types of PC & Mac design files in house with no film positives and the powerful workflow software allows multiple image placements across one large screen or multiple small screens to further enhance productivity
-
No consumables and low power consumption for minimized costs
-
10,000+ hour lamp life and easy, low cost maintenance
Specifications
-
Maximum Image Size: 23.6” x 31.5”
-
Maximum Frame Size: 33.5 x 43.3”
- Overall Dimensions: 65.7 x 32.3 x 36.6”
-
Compatible with 110V or 220V input
-
Requires compressed air for clamps (90 psi, less than 1 CFM)
-
Two Year Warranty
