Product Overview
To purchase by phone, to seek financing options, to discuss this product or other SAATI products that you don't see, contact us! Call SAATI toll-free -1-800-431-2200 - or e-mail us

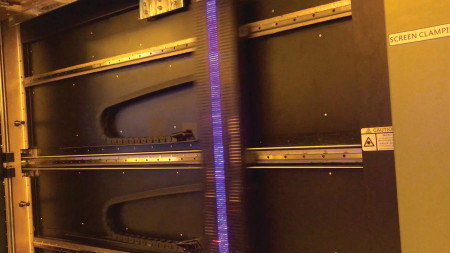

Self-contained, super high efficiency direct laser Computer-to-Screen image & exposure unit, operated by PC with optional RIP.
Applications
Designed to efficiently image and expose one screen up to 63 x 41.3” or two screens up to a maximum size 23” x 31” without vacuum or film positives.
Characteristics
- Vertical glassless design with safety shutter
- 96 laser array capable of creating stencils at 2540, 1693, 1270, 1016, and 847 DPI
- Exposes all emulsions and stencil film types
- Easy to use software, compatible with many RIP programs, RIP can be provided as part of purchase
- Utilizes 1-bit TIFF file format
Features/Benefits
- Very high resolution CtS exposure capable of reproducing the most demanding image types
- Double screen output by imaging & exposing two screens at once
- Digitally process all types of PC & Mac design files in house with no film positives and the powerful workflow software allows multiple image placements across one or two screens to further enhance productivity
- No consumables and low power consumption for minimized costs
- 10,000+ hour lamp life and easy, low cost maintenance
Specifications
- Maximum Image Size: 23.6” x 47.2”
- Maximum Frame Size: 41.3” x 63”
- Overall Dimensions: 86.6 x 22.8 x 64”
- Compatible with 110V or 220V input
- Requires compressed air for clamps (90 psi, less than 1 CFM)
- Two Year Warranty
